| 关键词参数 |
说明 |
| width | 箭头的宽度，单位是点 |
| headwidth | 箭头头部的宽度，单位是点 |
| headlength | 箭头头部的长度，单位是点 |
| shrink | 箭头两端收缩的百分比 |
| ? | 任意matplotlib.patches.FancyArrowPatch属性 |
| 类别 |
箭头样式 |
属性 |
| Curve | – | None |
| CurveA | <- | head_length=0.4, head_width=0.2 |
| CurveB | -> | head_length=0.4, head_width=0.2 |
| CurveAB | <-> | head_length=0.4, head_width=0.2 |
| CurvefilledA |
<|- | head_length=0.4, head_width=0.2 |
| CurvefilledB | -|> | head_length=0.4, head_width=0.2 |
| CurvefilledAB | <|-|> | head_length=0.4, head_width=0.2 |
| BrackedA | ]- | widthA=1.0, lengthA=0.2, angleA=0 |
| BrackedB | -] | widthB=1.0, lengthB=0.2, angleB=0 |
| BrackedAB | ]-[ |
widthA=1.0, lengthA=0.2, angleA=0 widthB=1.0, lengthB=0.2, angleB=0 |
| BarAB | |-| |
widthA=1.0, lengthA=0.2, widthB=0, angleB=0 |
| BrackedCurve | ]-> | widthA=1.0, lengthA=0.2, angleA=None |
| CurveBarcked | <-[ | widthB=1.0, lengthB=0.2, angleB=None |
| Simple | simple | head_length=0.5, head_width=0.5, tail_width=0.2 |
| Fancy | fancy | head_length=0.4, head_width=0.4, tail_width=0.4 |
| Wedge | wedge |
tail_width=0.3, shrink_factor=0.5 |

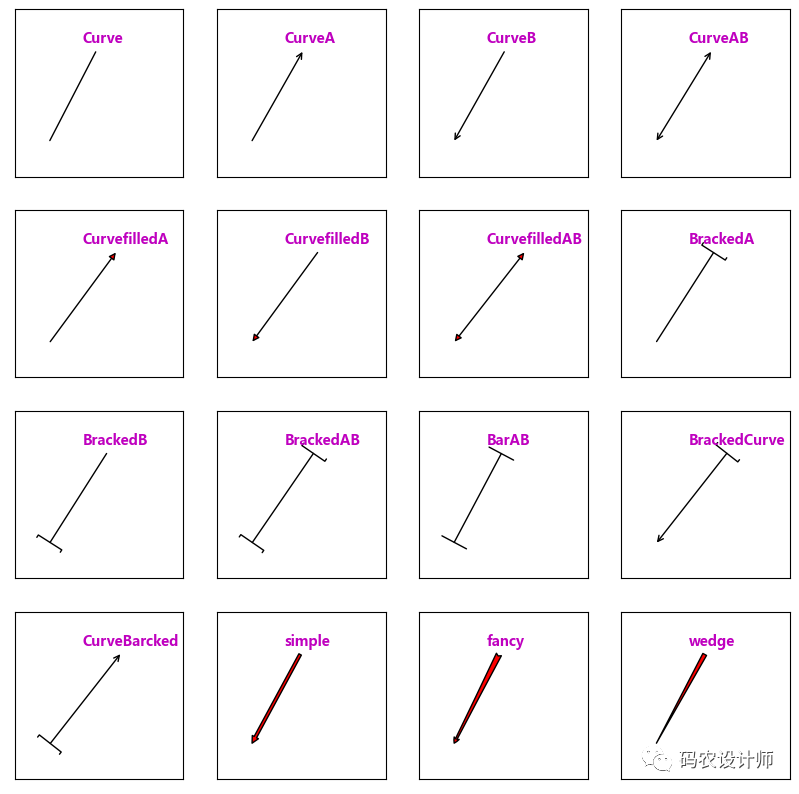

ArrowStyle_list = ['-', '<-', '->', '<->', '<|-','-|>', '<|-|>', ']-', '-[', ']-[', '|-|', ']->', '<-[', 'simple', 'fancy', 'wedge']
ArrowStyle_name_list = ['Curve', 'CurveA', 'CurveB', 'CurveAB', 'CurvefilledA','CurvefilledB', 'CurvefilledAB', 'BrackedA', 'BrackedB', 'BrackedAB', 'BarAB', 'BrackedCurve', 'CurveBarcked', 'simple', 'fancy', 'wedge']
fig, axes = plt.subplots(4, 4 , figsize=(10, 10))
for i in range(len(ArrowStyle_list)):
axes[i//4,i%4].annotate(text=ArrowStyle_name_list[i], # 注释文字
fontweight='bold', # 字体粗细
color='m', # 字体颜色
xy=(0.2,0.2),
xytext=(0.4,0.8),
arrowprops=dict(
facecolor='r', # 箭头填充色
edgecolor='k', # 箭头边框色
arrowstyle=ArrowStyle_list[i]) # 箭头样式
)
axes[i//4,i%4].set_xticks([])
axes[i//4,i%4].set_yticks([])
连接样式：
另外，FancyArrowPatch中的connectionstyle（连接样式）包含样式参看下表（angle3和arc3中的3意味着所得到的路径是二次样条段，即三个控制点）：
| 关键词 |
属性说明 |
| angle |
angleA=90, angleB=0, rad=0.0 |
| angle3 |
angleA=90, angleB=0 |
| arc | angleA=90, angleB=0, armA=None, armB=None, rad=0.0 |
| arc3 | rad=0.0 |
| bar | armA=0.0, armB=0.0, fraction=0.3, angle=None |

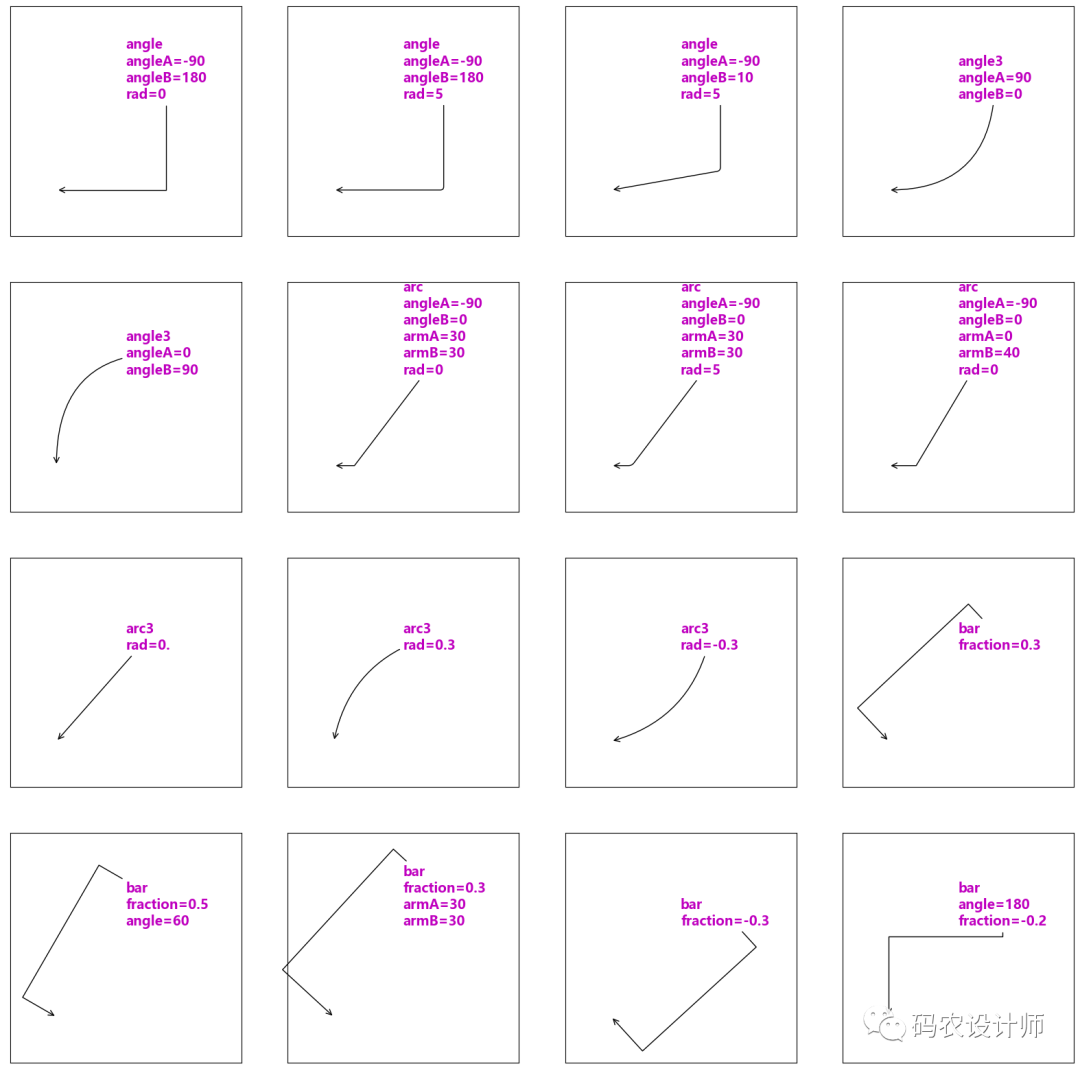

通过设置参数connectionstyle的具体值，绘制出以下连接样式：
connectionstyle_list = ["angle,angleA=-90,angleB=180,rad=0",
"angle,angleA=-90,angleB=180,rad=5",
"angle,angleA=-90,angleB=10,rad=5",
"angle3,angleA=90,angleB=0",
"angle3,angleA=0,angleB=90",
"arc,angleA=-90,angleB=0,armA=30,armB=30,rad=0",
"arc,angleA=-90,angleB=0,armA=30,armB=30,rad=5",
"arc,angleA=-90,angleB=0,armA=0,armB=40,rad=0",
"arc3,rad=0.",
"arc3,rad=0.3",
"arc3,rad=-0.3",
"bar,fraction=0.3",
"bar,fraction=0.5,angle=60",
"bar,fraction=0.3,armA=30,armB=30",
"bar,fraction=-0.3",
"bar,angle=180,fraction=-0.2"]
connectionstyle_name = ["anglenangleA=-90nangleB=180nrad=0",
"anglenangleA=-90nangleB=180nrad=5",
"anglenangleA=-90nangleB=10nrad=5",
"angle3nangleA=90nangleB=0",
"angle3nangleA=0nangleB=90",
"arcnangleA=-90nangleB=0narmA=30narmB=30nrad=0",
"arcnangleA=-90nangleB=0narmA=30narmB=30nrad=5",
"arcnangleA=-90nangleB=0narmA=0narmB=40nrad=0",
"arc3nrad=0.",
"arc3nrad=0.3",
"arc3nrad=-0.3",
"barnfraction=0.3",
"barnfraction=0.5nangle=60",
"barnfraction=0.3narmA=30narmB=30",
"barnfraction=-0.3",
"barnangle=180nfraction=-0.2"]
fig, axes = plt.subplots(4, 4 , figsize=(20, 20))
for i in range(len(connectionstyle_list)):
axes[i//4,i%4].annotate(text=connectionstyle_name[i], # 注释文字
fontweight='bold', # 字体粗细
fontsize=14, # 字体大小
color='m', # 字体颜色
xy=(0.2,0.2),
xytext=(0.5,0.6),
arrowprops=dict(
facecolor='r', # 箭头填充色
edgecolor='k', # 箭头边框色
arrowstyle='->', # 箭头样式
connectionstyle=connectionstyle_list[i] # 连接样式
)
)
axes[i//4,i%4].set_xticks([])
axes[i//4,i%4].set_yticks([])
更多内容可以前往官网查看：
https://matplotlib.org/stable/
